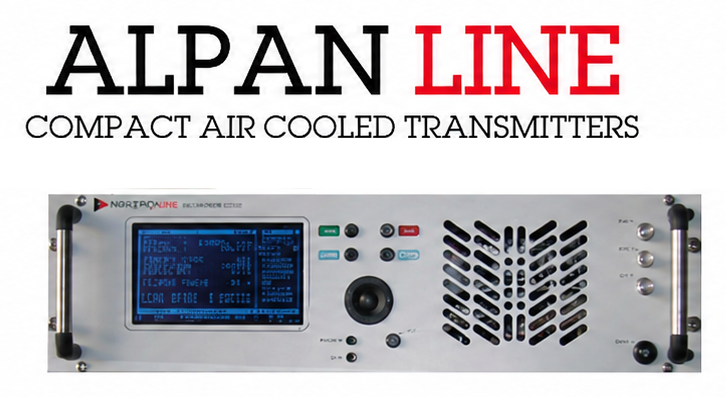

ALPAN TV & DAB+ Compact TX

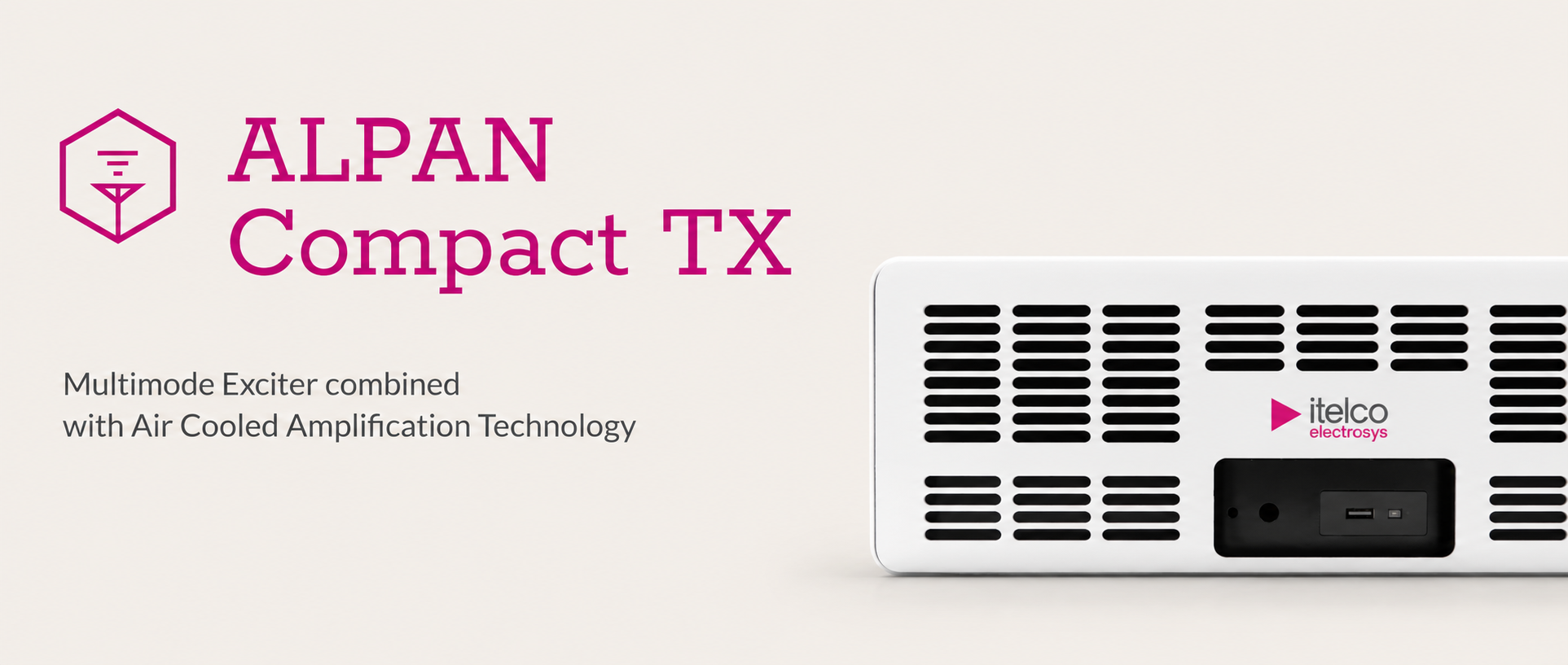

ALPAN represents the new Compact transmitters line. The MEX II multimode exciter and the air cooled amplification section are integrated into a single unit, with the cooling system designed around this architecture.
The line comes in two versions: TV, from 25W to 600W DVB-T/H, and VHF DAB+, from 350W to 1000W. In the DAB+ version the MEX II exciter is combined with the air cooled amplification modules of the THALNA line.
The homogeneity among all product lines and the optimized manufacturing process allow Itelco to remain highly competitive, meeting customer needs in terms of cost reduction, maintenance and spare parts management.
TV version
Compactness & Modularity
Integrated design with flexible RF pallet configuration for deployment scalability
Power Configurations
25W to 600W DVB-T/H, up to 1.4kW ATV with modular RF pallets (1/2/3)
Integrated MEX II Exciter
MEX II multimode exciter built into the unit and combined with air cooled amplification for superior performance
Operating Costs
Homogeneous product lines enable competitive pricing and ease of maintenance
- Integrated Control Units
- Integrated Exciter
- 1/2/3 RF Pallets (LDMOS)
- Air Cooled System (2 blowers)
TV Power Configurations
| ANALOG TV POWER (WP.S.) | DVB-T/H, DVB-T2, ISDB-T/TB, ATSC 3.0, DTMB POWER (WRMS) | ATSC POWER (WRMS) | DIMENSIONS (U X 19" RACK) |
|---|---|---|---|
| 60 | 25 | 35 | 3 |
| 120 | 50 | 70 | 3 |
| 250 | 100 | 140 | 3 |
| 500 | 200 | 280 | 4 |
| 1000 | 400 | 560 | 4 |
| 1400 | 600 | 800 | 4 |
VHF DAB+ version
Integrated Exciter & Amplifier
MEXII multimode exciter combined with Thalna air cooled amplification modules
Medium-High Power DAB+
350W up to 1000W in VHF DAB+ with modular RF pallets (1/2/3)
Multi-Standard Operation
DAB / DAB+ / T-DMB support with SFN and MFN transmission modes
Core Design Principles
Compactness, modularity and redundancy for flexible deployment
